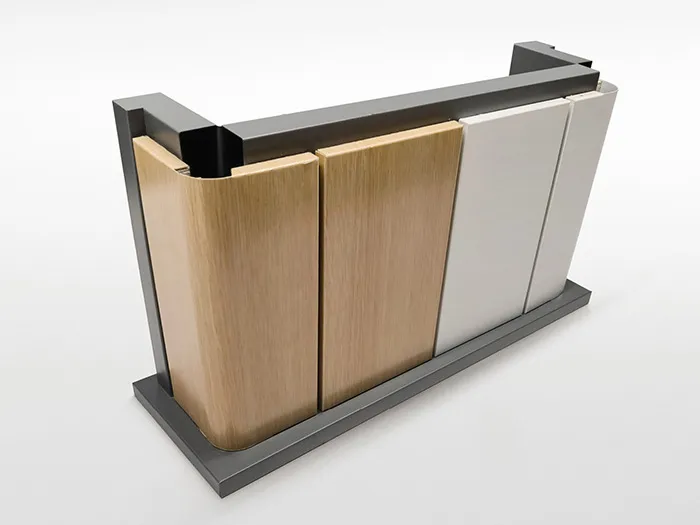

Steel Wall Panel System for Interior Wall Decoration

Product Description

Steel Wall Panel System is a high-performance Interior Wall Cladding solution composed of hot-dip galvanized steel panels and composite backing materials.

The system combines strong metal structure with decorative surface finishes, providing excellent durability, easy maintenance and a clean appearance. The surface is smooth, easy to clean and suitable for large-area interior wall decoration.

Steel wall panels are widely used in hospitals, schools, business halls, service centers and other Public Buildings.

Product Structure

1. Galvanized Steel Base Layer

The base layer uses hot-dip galvanized steel sheet with a thickness of 0.6-0.8mm.

The steel plate is treated with:

• Anti-rust treatment

• Anti-corrosion treatment

• Hot-dip galvanizing process

This provides high strength and long-term durability.

2. Decorative Surface Layer

The surface of the steel wall panel can be processed with different finishing technologies:

• Electrostatic powder coating

• Pre-painted coating

• Thermal transfer printing

• Film coating

Various decorative effects are available:

• Wood grain

• Stone grain

• Leather texture

• Customized patterns

3. Core Material

According to project requirements, different backing materials can be selected:

• Gypsum board

• Calcium silicate board

• Corrugated board

• Honeycomb board

Functions of Core Materials

The core material provides:

• Maintain flatness of the wall surface

• Increase impact resistance of wall panels

• Reduce hollow sound inside the panel structure

Surface Treatment Options

Steel wall panel surfaces are mainly available with:

• Pre-roller coating

• Electrostatic powder spraying

• Heat transfer printing

• Film coating

Different finishes can meet various architectural design requirements.

Installation Methods

Steel Composite Wall Panels can be installed with different structural systems:

1. Snap-in Structure

Uses special Steel Keel Systems with reserved decorative joints between panels.

2. Flat Angle Code Assembly

Panels are assembled with angle brackets, steel frames and fixing screws to create a stable structure.

3. Hook Installation System

Special keels and hooks are used for panel installation, allowing tight joints or reserved gaps according to design requirements.

4. Batten Structure

Surface materials are fixed with special clamps and decorative U-shaped battens.

Applications

Suitable for:

• Hospitals

• Schools

• Business halls

• Service centers

• Office buildings

• Public buildings
